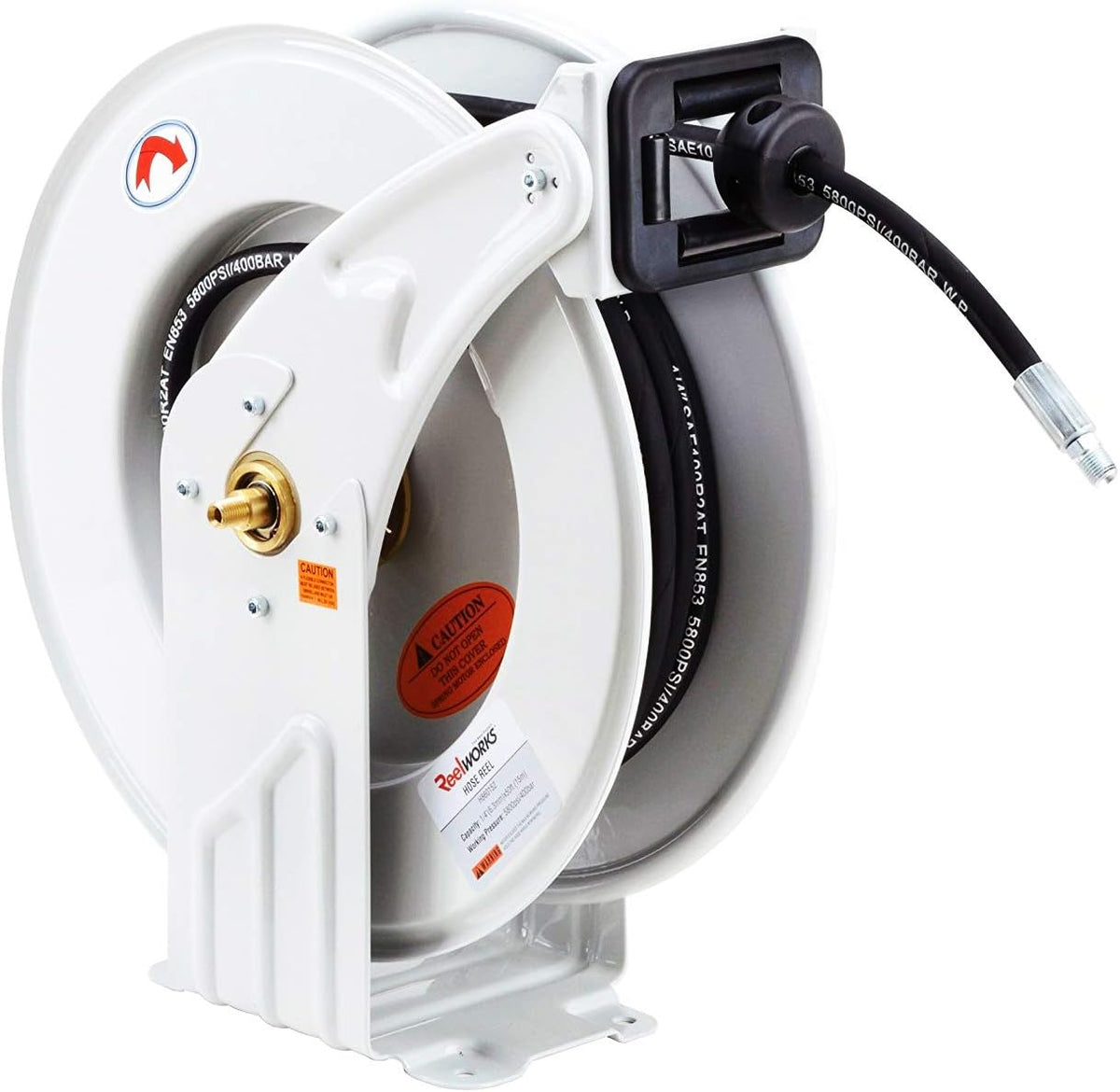

Retractable 1/2" x 50' Industrial Steel Hose Reel B265
Retractable 1/2" x 50' Industrial Steel Hose Reel B265
This Reelworks Oil Hose Reel is crafted of heavy duty gauge industrial steel, heat treated w/ powder coating resisting against corrosion. Reinforced flanged edges, stamped steel dual guide arms & pedestal base all light weight & strong, ensuring optimal support. The Premium Commercial SAE.100R1AT Oil Hose is made of Nitrile, Neoprene & single high-tensile steel wire braid & has a working pressure of 2320PSI/160BAR w/ 1/2" (12.7m) MNPT connections for large volume delivery.

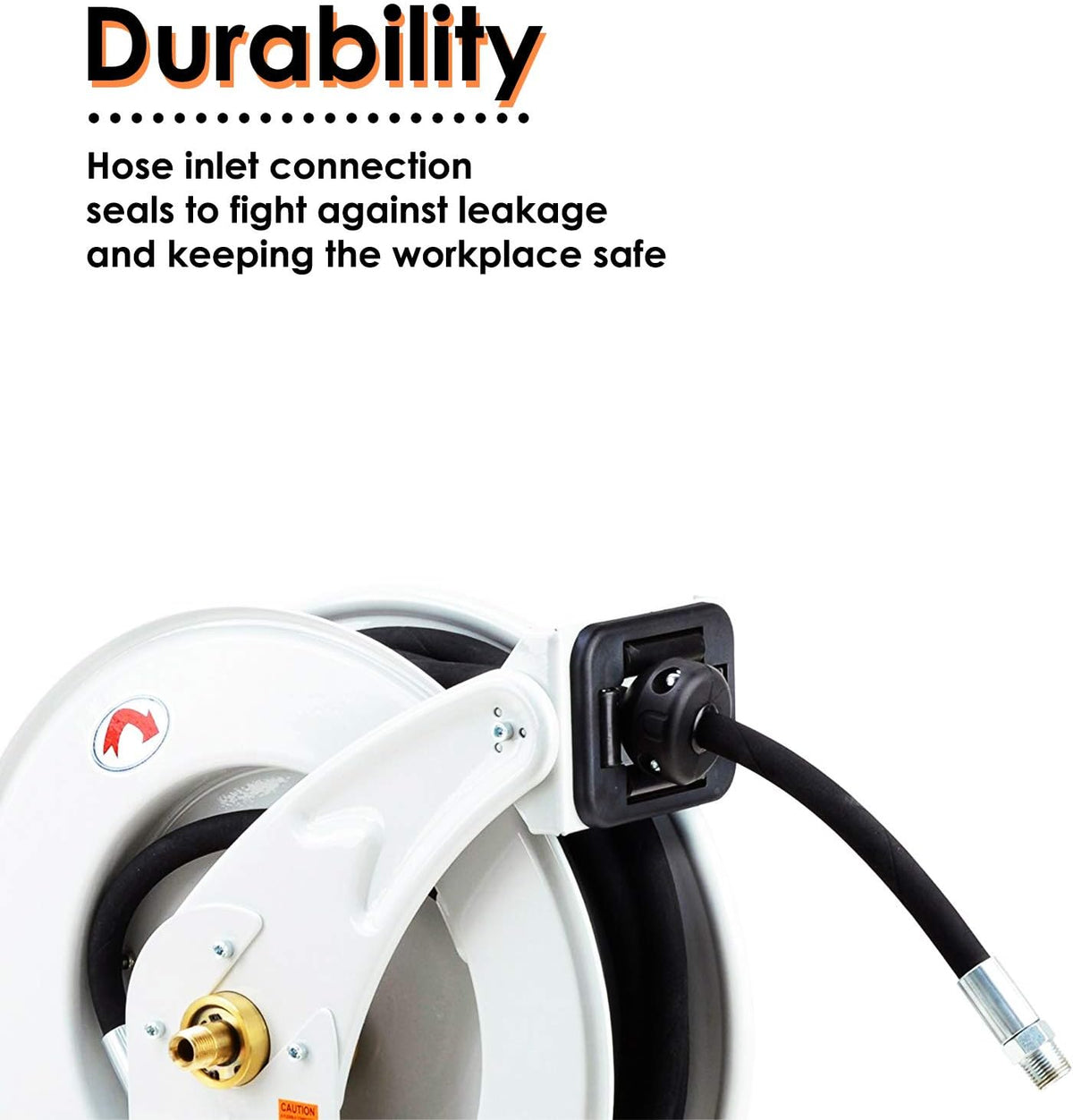

Utilizing double adjustment enclosed multi-position release ratchet spring, locking the hose at any desired length. Ball bearing swivel joint inlet connection protecting against leaks & reducing swivel spool & body friction, an Adjustable Hose Stopper & Non-Snag Rollers. Premium SAE.100R1AT Hose is Resistant to: Oils, acids, puncture resistance, abrasion, weather & works in the toughest conditions of -40°F to 212°F (-40°C to 100°C), for the best advantage to suit your needs.
Our Reels are cull quality tested. Reelworks Reels are best suited for indoor/outdoor use, night or day, DIY or industrial applications allowing for extension to be up out of the way keeping the home/workplace safe. Includes bolts fitting the 1/2” (12.7mm) holes to mount, (lead-in hose not included). Oil Hose Reels are suitable for Petroleum & Water based hydraulic fluids (NOT AIR)
| AlphaWorks Alexa Smart Extension Cord Reel Waterproof 13A 1625W 14AWG x 50" Feet | Reelworks Heavy Duty Steel Retractable ½" x50' EPDM Hose UREA/DEF Reel HRL808154 | Reelworks Heavy Duty Steel Dual or Single Arm 1/2"x50' SAE.100R1 Oil Hose Reels | Reelworks Heavy Duty Steel 1"x50' NBR Fuel Reel or ¼"x 50' SAE.100R2 GREASE Reel | Goodyear Dual Arm Steel 1/2"x50' Oil Hose Reel or Steel 1/4" x50' Welding Reel | Goodyear Heavy Duty Steel Dual Arm & Pedestal 1/2" or 3/8"x50'-65' Air Hose Reel | |
|---|---|---|---|---|---|---|
| Advanced Tech | Compatible with Alexa, Echo, Google Assistant , IFTTT , Smart Life & more! | N/A | N/A | N/A | N/A | N/A |
| Application | Control Independent Outlets, Supply Power & Set Timers. | Professional, Commercial, Industrial Use | Professional, Commercial, Industrial Use | Professional, Commercial, Industrial Use | Professional, Commercial, Industrial Use | Professional, Commercial, Industrial Use |
| Hose Diameter (inches), Cord / Tap Type & Length (feet) | Premium Grade SJTOW Cable | 1/2" (12.7mm) x 50' (15m) | 1/2" (12.7mm) x 50' (15m) | Fuel: 1" (25mm) x 50' (15m) Grease: 1/4" (6.35mm) x 50' (15m) | Welding: 1/4" (6.35mm) x 50' (15m) Oil: 1/2" (12.7mm) x 50' (15m) | 3/8" (9.5mm) x 50' (15m) or 1/2" (9.55mm) x 50' (15m) (Depends on Model) |
| Wire Core / Gauge / Hz // Hose Type & Working Pressure | 3-Wire Grounded / 14AWG / 60Hz | EPDM Rubber 300PSI / 20BAR | S.A.E. 100R1 Hose 2320PSI / 160BAR | Fuel: NBR Rubber 300PSI / 20BAR (W.P.) Grease: S.A.E.100R2 Hose 5800PSI / 400BAR | Welding: Twin Rubber Hose STD Duty Max Oil: S.A.E. 100R1 Hose 2320PSI / 160BAR | SBR Rubber 300PSI / 20BAR |
| Amps / Voltage / MAX Watts / WiFi Hz & Range // Inlet / Outlet (inches) | 13A / 100-240V AC / 1625W / Wi-Fi 2.4GHz Dual Independent Outlet / 320ft Range | 1/2" MNPT / 1/2" MNPT | Single Arm: 1/2" FNPT / 1/2" MNPT Dual Arm: 1/2" MNPT / 1/2" MNPT | Fuel: 1" FNPS / 1" MNPT Grease: 1/4" MNPT / 1/4" MNPT | Welding: 9/16" Female UNF (TPI-18) Oil: 1/2" FNPT / 1/2" MNPT | 1/4" FNPT / 1/4" MNPT or 1/2" FNPT / 1/2" MNPT (Depends on Model) |
| Lead-in Hose ID & Length // Prong & Plug Type // | 3-prong plug NEMA 5-15R / NEMA 5-15P / 110V Outlet Source | (Not Included) | (Not Included) | Fuel: 1" (25mm) x 4' (1.2m) (Grease: Not Included) | Welding: Twin 1/4" (6.35mm) x 36" (0.9m) (Oil: Not Included) | (Not Included) |
| Item Weight (pounds) | 18 lbs | 63.8 lbs | Single Arm: 60.1 lbs Dual Arm: 64.8 lbs | Fuel: 134.2 lbs Grease: 62.5 lbs | Welding: 58.3 lbs Oil: 55 lbs | 49 lbs+ (Depends on Model) |
| Product Dimensions (Inches) | 16.9" x 6.9" x 14.8" | 21 x 8.4 x 22 | Single: 17.5 x 5.5 x 20.2 Dual: 17.5 x 8.5 x 19.8 | Fuel: 23 x 14.4 x 23.2 Grease: 17.5 x 8.5 x 19.8 | Welding: 20.7 x 9.8 x 23 Oil: 19.5 x 5.6 x 19.3 | 19.5 x 5.6 x 19.3 (Depends on Model) |
| UV Resistant, Kink Free, Weather Durable | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Brand | AlphaWorks | Reelworks | Reelworks | Reelworks | Goodyear | Goodyear |
